Base class for INA226 unit. More...

#include <unit_INA226.hpp>

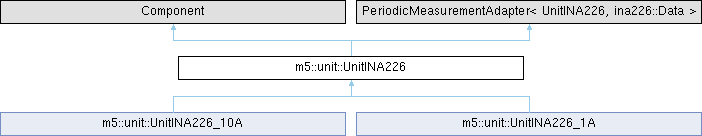

Inheritance diagram for m5::unit::UnitINA226:

Classes
struct	config_t
	Settings for begin. More...

Public Member Functions
virtual bool	begin () override

virtual void	update (const bool force=false) override

bool	readAlertOccurred (bool &alert)
	Read the alert occurred?

bool	powerDown ()
	Power down.

bool	softReset (const bool all=false)
	Software reset.

Settings for begin
config_t	config ()
	Gets the configration.

void	config (const config_t &cfg)
	Set the configration.

Properties
float	shuntResistor () const
	Gets the maximum current (A)

float	maximumCurrent () const
	Gets the maximum current (A)

float	currentLSB () const
	Gets the current LSB.

Measurement data by periodic
float	shuntVoltage () const
	Oldest shunt voltage (mV)

float	voltage () const
	Oldest Bus voltage (mV)

float	power () const
	Oldest power (mW)

float	current () const
	Oldest current (mA)

Periodic measurement
bool	startPeriodicMeasurement (const bool current=true, const bool voltage=true, const bool power=true)
	Start periodic measurement in the current settings.

bool	startPeriodicMeasurement (const ina226::Sampling rate, const ina226::ConversionTime sct, const ina226::ConversionTime bct, const bool current=true, const bool voltage=true, const bool power=true)
	Start periodic measurement.

bool	stopPeriodicMeasurement ()
	Stop periodic measurement.

Single shot measurement
bool	measureSingleshot (ina226::Data &data, const bool current=true, const bool voltage=true, const bool power=true)
	Measurement single shot.

bool	measureSingleshot (ina226::Data &data, const ina226::Sampling rate, const ina226::ConversionTime sct, const ina226::ConversionTime bct, const bool current=true, const bool voltage=true, const bool power=true)
	Measurement single shot.

Settings
bool	readMode (ina226::Mode &mode)
	Read the operation mode.

bool	readSamplingRate (ina226::Sampling &rate)
	Read the sampling rate.

bool	writeSamplingRate (const ina226::Sampling rate)
	Write the sampling rate.

bool	readBusVoltageConversionTime (ina226::ConversionTime &ct)
	Read the convsrsion time of Bus voltage.

bool	writeBusVoltageConversionTime (const ina226::ConversionTime ct)
	Write the convsrsion time of Bus voltage @paramct Conversion time.

bool	readShuntVoltageConversionTime (ina226::ConversionTime &ct)
	Read the convsrsion time of Shunt voltage.

bool	writeShuntVoltageConversionTime (const ina226::ConversionTime ct)
	Write the convsrsion time of Shunt voltage @paramct Conversion time.

bool	readCalibration (uint16_t &cal)
	Read the calibration value.

bool	writeCalibration (const uint16_t cal)
	Write the calibration value.

bool	readAlert (ina226::Alert &type)
	Read the alert type.

bool	writeAlert (const ina226::Alert type, const uint16_t limit, const bool latch=true)
	Write the alert type and limit value.

bool	readAlertLimit (uint16_t &limit)
	Read the alerm limit value.

bool	writeAlertLimit (const uint16_t limit)
	Write the alerm limit value.

Protected Member Functions
	UnitINA226 (const float shuntRes, const float maxCurA, const float curLSB, const uint8_t addr=DEFAULT_ADDRESS)
	Constructor.

bool	start_periodic_measurement (const bool current, const bool voltage, const bool power)

bool	start_periodic_measurement (const ina226::Sampling rate, const ina226::ConversionTime sct, const ina226::ConversionTime bct, const bool current, const bool voltage, const bool power)

bool	stop_periodic_measurement ()

bool	write_mode (const ina226::Mode mode)

bool	read_configuration (uint16_t &v)

bool	write_configuration (const uint16_t v)

bool	read_mask (uint16_t &m)

bool	write_mask (const uint16_t m)

bool	is_data_ready ()

bool	read_measurement (ina226::Data &d)

	M5_UNIT_COMPONENT_PERIODIC_MEASUREMENT_ADAPTER_HPP_BUILDER (UnitINA226, ina226::Data)

Detailed Description

Base class for INA226 unit.

Constructor & Destructor Documentation

◆ UnitINA226()

m5::unit::UnitINA226::UnitINA226	(	const float	shuntRes,
		const float	maxCurA,
		const float	curLSB,
		const uint8_t	addr = DEFAULT_ADDRESS )

protected

Constructor.

Parameters

shuntRes	Shunt resistor (O)
maxCurA	Maximum measure current (A) @paream curLSB currentLSB

Member Function Documentation

◆ measureSingleshot() [1/2]

bool m5::unit::UnitINA226::measureSingleshot	(	ina226::Data &	data,
		const bool	current = true,
		const bool	voltage = true,
		const bool	power = true )

Measurement single shot.

Measuring in the current settings

Parameters

[out]	data	Measuerd data
	current	Measure current if true
	voltage	Measure bus voltage if true
	power	Measure power if true

Returns: True if successful

Warning: During periodic detection runs, an error is returned; Until it can be measured, it will be blocked until the timeout time

◆ measureSingleshot() [2/2]

bool m5::unit::UnitINA226::measureSingleshot	(	ina226::Data &	data,
		const ina226::Sampling	rate,
		const ina226::ConversionTime	sct,
		const ina226::ConversionTime	bct,
		const bool	current = true,
		const bool	voltage = true,
		const bool	power = true )

Measurement single shot.

Measuring in the current settings

Parameters

[out]	data	Measuerd data
	rate	Sampling Sampling rate @paran sct Shunt conversion time @paran bct Bus conversion time
	current	Measure current if true
	voltage	Measure bus voltage if true
	power	Measure power if true

Returns: True if successful

Warning: During periodic detection runs, an error is returned; Until it can be measured, it will be blocked until the timeout time

◆ powerDown()

bool m5::unit::UnitINA226::powerDown ( )

Power down.

Returns: True if successful

◆ readAlert()

bool m5::unit::UnitINA226::readAlert ( ina226::Alert & type )

Read the alert type.

Parameters

[out] type Alert type

Returns: True if successful

◆ readAlertLimit()

bool m5::unit::UnitINA226::readAlertLimit ( uint16_t & limit )

Read the alerm limit value.

Parameters

[out] limit Limit value

Returns: True if successful

Note: The unit of value depends on the type of Alert (See also datasheet)

◆ readAlertOccurred()

bool m5::unit::UnitINA226::readAlertOccurred ( bool & alert )

Read the alert occurred?

Parameters

[out] alert An alert occurred if true

Returns: True if successful

◆ readBusVoltageConversionTime()

bool m5::unit::UnitINA226::readBusVoltageConversionTime ( ina226::ConversionTime & ct )

Read the convsrsion time of Bus voltage.

Parameters

[out] ct Conversion time

Returns: True if successful

◆ readCalibration()

bool m5::unit::UnitINA226::readCalibration ( uint16_t & cal )

Read the calibration value.

Parameters

[out] cal Calibration value

Returns: True if successful

◆ readMode()

bool m5::unit::UnitINA226::readMode ( ina226::Mode & mode )

Read the operation mode.

Parameters

[out] mode Mode

Returns: True if successful

◆ readSamplingRate()

bool m5::unit::UnitINA226::readSamplingRate ( ina226::Sampling & rate )

Read the sampling rate.

Parameters

[out] rate Samling rate

Returns: True if successful

◆ readShuntVoltageConversionTime()

bool m5::unit::UnitINA226::readShuntVoltageConversionTime ( ina226::ConversionTime & ct )

Read the convsrsion time of Shunt voltage.

Parameters

[out] ct Conversion time

Returns: True if successful

◆ softReset()

bool m5::unit::UnitINA226::softReset ( const bool all = false )

Software reset.

Parameters

all	Rewrite calibration value if false

Returns: True if successful

Warning: All register values are changed to their initial values

◆ startPeriodicMeasurement() [1/2]

bool m5::unit::UnitINA226::startPeriodicMeasurement	(	const bool	current = true,
		const bool	voltage = true,
		const bool	power = true )

inline

Start periodic measurement in the current settings.

Parameters

current	Measure current if true
voltage	Measure bus voltage if true
power	Measure power if true

Returns: True if successful

◆ startPeriodicMeasurement() [2/2]

bool m5::unit::UnitINA226::startPeriodicMeasurement	(	const ina226::Sampling	rate,
		const ina226::ConversionTime	sct,
		const ina226::ConversionTime	bct,
		const bool	current = true,
		const bool	voltage = true,
		const bool	power = true )

inline

Start periodic measurement.

Parameters

rate	Sampling Sampling rate @paran sct Shunt conversion time @paran bct Bus conversion time
current	Measure current if true
voltage	Measure bus voltage if true
power	Measure power if true

Returns: True if successful

◆ stopPeriodicMeasurement()

bool m5::unit::UnitINA226::stopPeriodicMeasurement ( )

inline

Stop periodic measurement.

Returns: True if successful

◆ writeAlert()

bool m5::unit::UnitINA226::writeAlert	(	const ina226::Alert	type,
		const uint16_t	limit,
		const bool	latch = true )

Write the alert type and limit value.

Parameters

type	Alert type
limit	Limit value (Ignore if type is Alert::ConversionReady)
latch	Alert latch enabled if true

Returns: True if successful

Note

The unit of value depends on the type of Alert (See also datasheet)

Type	Alert	Description	Unit	Value
Type::ShuntOver Type::ShuntUnder	SOL/SUL	Shunt over/under limit	V	V / 0.00125
Type::BusOver Type::BusUnder	BOL/BUL	Bus over/under limit	V	V / 0..00125
Type::PowerOver	POL	Power over limit	W	W / (25 × currentLSB)
Type::ConversionReady	CNVR	Conversion ready	-	-

Warning: During periodic detection runs, an error is returned

◆ writeAlertLimit()

bool m5::unit::UnitINA226::writeAlertLimit ( const uint16_t limit )

Write the alerm limit value.

Parameters

limit Limit value

Returns: True if successful

Note: The unit of value depends on the type of Alert (See also datasheet)

Warning: During periodic detection runs, an error is returned

◆ writeBusVoltageConversionTime()

bool m5::unit::UnitINA226::writeBusVoltageConversionTime ( const ina226::ConversionTime ct )

Write the convsrsion time of Bus voltage @paramct Conversion time.

Returns: True if successful

Warning: During periodic detection runs, an error is returned

◆ writeCalibration()

bool m5::unit::UnitINA226::writeCalibration ( const uint16_t cal )

Write the calibration value.

Parameters

cal	Calibration value

Returns: True if successful

◆ writeSamplingRate()

bool m5::unit::UnitINA226::writeSamplingRate ( const ina226::Sampling rate )

Write the sampling rate.

Parameters

rate	Samling rate

Returns: True if successful

Warning: During periodic detection runs, an error is returned

◆ writeShuntVoltageConversionTime()

bool m5::unit::UnitINA226::writeShuntVoltageConversionTime ( const ina226::ConversionTime ct )

Write the convsrsion time of Shunt voltage @paramct Conversion time.

Returns: True if successful

Warning: During periodic detection runs, an error is returned
