LED base unit. More...

#include <unit_LED.hpp>

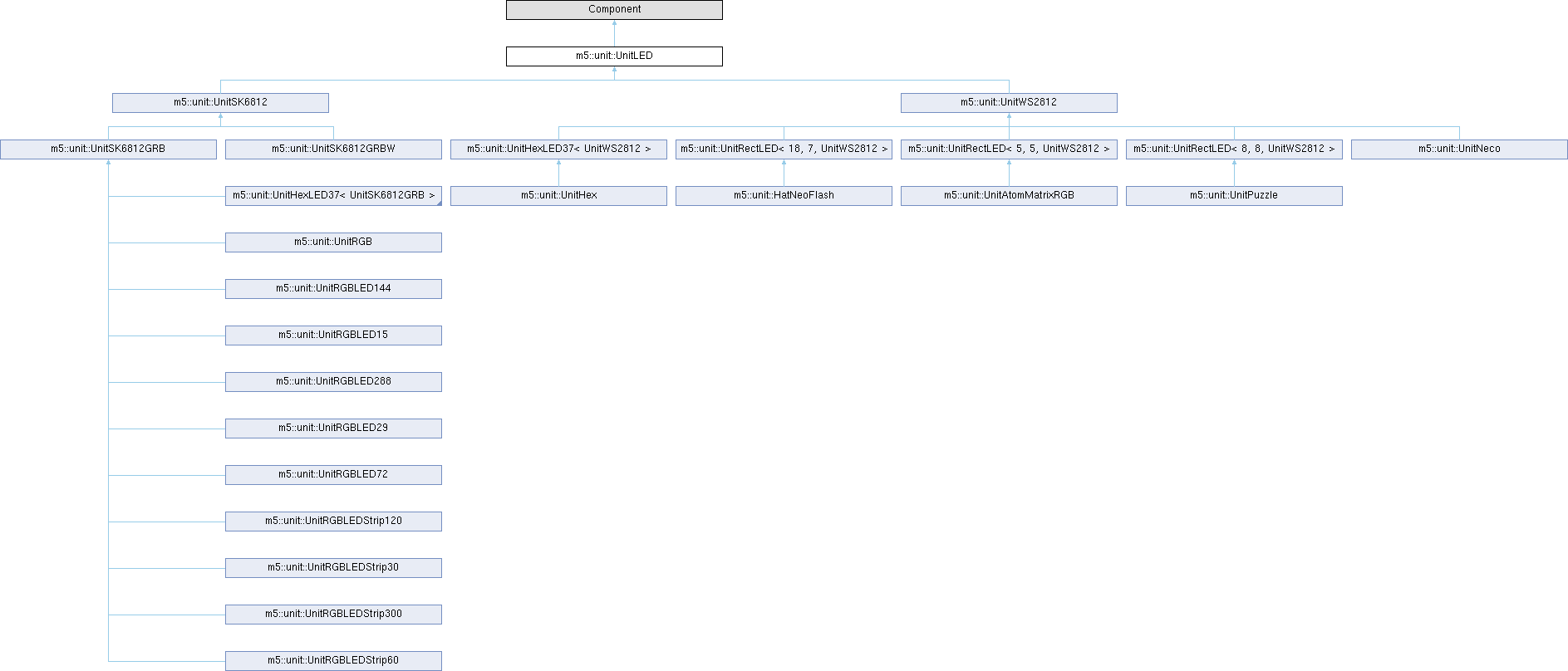

Inheritance diagram for m5::unit::UnitLED:

Classes
struct	config_t
	Settings for begin. More...

Public Types
using	container_type = std::vector<uint8_t>
	pixel container

using	item_container_type = std::vector<gpio::m5_rmt_item_t>
	item container

Public Member Functions
virtual	~UnitLED ()
	Destructor.

bool	add (UnitLED &c, const int16_t channel)
	Connect an LED unit as a daisy-chained child.

virtual bool	begin () override
	Begin the unit.

Configuration for begin
config_t	config ()
	Gets the configuration.

void	config (const config_t &cfg)
	Set the configuration.

Properties
uint16_t	numPixels () const
	Number of the pixels.

uint8_t	brightness () const
	Brightness.

virtual uint16_t	width () const
	Logical width in pixels.

virtual uint16_t	height () const
	Logical height in pixels.

bool	hasWhite () const
	Has white data?

rgb::Order	order () const
	Color order.

int8_t	offsetR () const
	Offset of red.

int8_t	offsetG () const
	Offset of green.

int8_t	offsetB () const
	Offset of blue.

int8_t	offsetW () const
	Offset of white.

const container_type &	pixels () const
	pixels container

rgb::Color	color (const uint16_t n) const
	Get the Color.

rgb::Color	absoluteColor (const uint16_t n) const
	Get the Color.

Apply
bool	writePixels ()
	Write pixel color to LED.

bool	show ()
	Write pixel color to LED (alias)

Modifiers
Note Calling writePixels() or show() is reflected in LEDs
void	setBrightness (const uint8_t b)
	Set the brightness.

bool	setPixelColor (const uint16_t n, const uint8_t r, const uint8_t g, const uint8_t b)
	Set pixel color (RGB)

bool	setPixelColor (const uint16_t n, const uint8_t r, const uint8_t g, const uint8_t b, const uint8_t w)
	Set pixel color (RGBW)

bool	setPixelColor (const uint16_t n, const rgb::wrgb32_color_t c)
	Set pixel color.

bool	setPixelColor (const uint16_t n, const rgb::Color &c)
	Set pixel color.

bool	fill (const rgb::Color &c, const uint16_t first=0, const uint16_t count=0)
	Fill the specified range with the specified color.

void	clear (void)
	Clear pixels.

bool	fillRainbow (const uint16_t first=0, const uint16_t count=0, const uint8_t firstHue=0)
	Fill the specified range to rainbow.

bool	fillGradation (const rgb::Color &firstClr, const rgb::Color &lastClr, const uint16_t first=0, const uint16_t count=0)
	Fill the specified range to gradation pixels.

bool	fillRandom (const uint16_t first=0, const uint16_t count=0)
	Fill the specified range to random color pixels.

void	shiftLeft (const uint16_t count=1)
	Shift pixels left.

void	shiftRight (const uint16_t count=1)
	Shift pixels right.

void	rotateLeft (const uint16_t count=1)
	Rotate pixels left.

void	rotateRight (const uint16_t count=1)
	Rotate pixels right.

Rotation
Note Calling writePixels() or show() is reflected in LEDs 1 rot angle varies from unit to unit (e.g. Puzzle 90 deg Hex 60 deg) Rotation direction is clockwise
virtual uint8_t	maxRotation () const
	Get the max rotation.

float	rotationDegree () const
	Get the rotation angle per 1.

int8_t	rotation () const
	Get the rotation.

void	setRotation (const int8_t rot)
	Set the rotation.

Pixels element access
Note Affected by rotation
rgb::Color	operator[] (const uint16_t i) const
	rvalue

PixelProxy	operator[] (const uint16_t i)
	lvalue

Protected Member Functions
virtual types::category_t	unit_category () const override

virtual gpio::adapter_config_t	rmt_config ()

virtual gpio::m5_rmt_item_t	rmt_item_one ()

virtual gpio::m5_rmt_item_t	rmt_item_zero ()

virtual gpio::m5_rmt_item_t	rmt_item_reset ()

container_type &	pixels ()

rgb::Color	get_pixel_color (const uint16_t n) const

bool	set_pixel_color (const uint16_t n, const rgb::Color &c)

uint8_t	rotation_of (const int8_t r) const

virtual uint16_t	index_of (const uint16_t n) const

container_type	rgb888_items ()

item_container_type	items ()

void	shift_left (const uint16_t count, const bool wrap)

void	shift_right (const uint16_t count, const bool wrap)

	UnitLED (const uint16_t num_of_pixels, const rgb::Order order)

Friends
class	InterfaceGPIO

class	InterfacePbHub

Detailed Description

LED base unit.

Member Function Documentation

◆ absoluteColor()

rgb::Color m5::unit::UnitLED::absoluteColor ( const uint16_t n ) const

inline

Get the Color.

Parameters

n	Position of the pixels

Returns: Color if exists

Note: Not affected by rotation

◆ add()

bool m5::unit::UnitLED::add	(	UnitLED &	c,
		const int16_t	channel )

Connect an LED unit as a daisy-chained child.

Parameters

c	Child LED unit
channel	Channel number

Returns: True if successful

Note: Shadows Component::add so only UnitLED subtypes are accepted as children of an LED daisy chain.

◆ begin()

bool m5::unit::UnitLED::begin ( )

overridevirtual

Begin the unit.

Returns: True if successful

Reimplemented in m5::unit::UnitAtomMatrixRGB, and m5::unit::UnitNeco.

◆ brightness()

uint8_t m5::unit::UnitLED::brightness ( ) const

inline

Brightness.

Returns: Current brightness (255 = 100%)

Note: Scaling factor (255 = 100%)

◆ clear()

void m5::unit::UnitLED::clear ( void )

inline

Clear pixels.

Note: All pixel color to WRGB 0,0,0,0

◆ color()

rgb::Color m5::unit::UnitLED::color ( const uint16_t n ) const

inline

Get the Color.

Parameters

n	Position of the pixels

Returns: Color if exists

Note: Affected by rotation

◆ config() [1/2]

config_t m5::unit::UnitLED::config ( )

inline

Gets the configuration.

Returns: config_t

◆ config() [2/2]

void m5::unit::UnitLED::config ( const config_t & cfg )

inline

Set the configuration.

Parameters

cfg config_t

◆ fill()

bool m5::unit::UnitLED::fill	(	const rgb::Color &	c,
		const uint16_t	first = 0,
		const uint16_t	count = 0 )

Fill the specified range with the specified color.

Parameters

c	rgb::Color
first	First position of the pixels
count	Number of pixels to fill (To the end if zero)

Returns: True if successful

Note: Affected by rotation

Warning: If white is not supported, white is ignored

◆ fillGradation()

bool m5::unit::UnitLED::fillGradation	(	const rgb::Color &	firstClr,
		const rgb::Color &	lastClr,
		const uint16_t	first = 0,
		const uint16_t	count = 0 )

Fill the specified range to gradation pixels.

Parameters

firstClr	First Color
lastClr	Last Color
first	First position of the pixels
count	Number of pixels to fill (To the end if zero)

Returns: True if successful

Note: Affected by rotation

◆ fillRainbow()

bool m5::unit::UnitLED::fillRainbow	(	const uint16_t	first = 0,
		const uint16_t	count = 0,
		const uint8_t	firstHue = 0 )

Fill the specified range to rainbow.

Parameters

first	First position of the pixels
count	Number of pixels to fill (To the end if zero)
firstHue	The first hue value

Returns: True if successful

Note: Affected by rotation

◆ fillRandom()

bool m5::unit::UnitLED::fillRandom	(	const uint16_t	first = 0,
		const uint16_t	count = 0 )

Fill the specified range to random color pixels.

Parameters

first	First position of the pixels
count	Number of pixels to fill (To the end if zero)

Returns: True if successful

Note: Affected by rotation

◆ hasWhite()

bool m5::unit::UnitLED::hasWhite ( ) const

inline

Has white data?

Returns: True if the color order includes a white channel

◆ height()

virtual uint16_t m5::unit::UnitLED::height ( ) const

inlinevirtual

Logical height in pixels.

Returns: Height

Reimplemented in m5::unit::UnitHexLED37< UnitSK6812GRB >, m5::unit::UnitHexLED37< UnitWS2812 >, m5::unit::UnitRectLED< 18, 7, UnitWS2812 >, m5::unit::UnitRectLED< 5, 5, UnitWS2812 >, and m5::unit::UnitRectLED< 8, 8, UnitWS2812 >.

◆ maxRotation()

virtual uint8_t m5::unit::UnitLED::maxRotation ( ) const

inlinevirtual

Get the max rotation.

Returns: Number of discrete rotation steps

Reimplemented in m5::unit::UnitHexLED37< UnitSK6812GRB >, m5::unit::UnitHexLED37< UnitWS2812 >, m5::unit::UnitRectLED< 18, 7, UnitWS2812 >, m5::unit::UnitRectLED< 5, 5, UnitWS2812 >, and m5::unit::UnitRectLED< 8, 8, UnitWS2812 >.

◆ numPixels()

uint16_t m5::unit::UnitLED::numPixels ( ) const

inline

Number of the pixels.

Returns: Number of pixels

◆ offsetB()

int8_t m5::unit::UnitLED::offsetB ( ) const

inline

Offset of blue.

Returns: Byte offset of Blue (-1 if not present)

◆ offsetG()

int8_t m5::unit::UnitLED::offsetG ( ) const

inline

Offset of green.

Returns: Byte offset of Green (-1 if not present)

◆ offsetR()

int8_t m5::unit::UnitLED::offsetR ( ) const

inline

Offset of red.

Returns: Byte offset of Red (-1 if not present)

◆ offsetW()

int8_t m5::unit::UnitLED::offsetW ( ) const

inline

Offset of white.

Returns: Byte offset of White (-1 if not present)

◆ operator[]() [1/2]

PixelProxy m5::unit::UnitLED::operator[] ( const uint16_t i )

inline

lvalue

Parameters

i	Position of the pixels

Returns: Proxy that writes back on assignment

◆ operator[]() [2/2]

rgb::Color m5::unit::UnitLED::operator[] ( const uint16_t i ) const

inline

rvalue

Parameters

i	Position of the pixels

Returns: Color at position i

◆ order()

rgb::Order m5::unit::UnitLED::order ( ) const

inline

Color order.

Returns: rgb::Order

◆ pixels()

const container_type & m5::unit::UnitLED::pixels ( ) const

inline

pixels container

Returns: Reference to the internal packed pixel buffer

◆ rotateLeft()

void m5::unit::UnitLED::rotateLeft ( const uint16_t count = 1 )

inline

Rotate pixels left.

Parameters

count Number of rotates

Note: Affected by rotation

◆ rotateRight()

void m5::unit::UnitLED::rotateRight ( const uint16_t count = 1 )

inline

Rotate pixels right.

Parameters

count Number of rotates

Note: Affected by rotation

◆ rotation()

int8_t m5::unit::UnitLED::rotation ( ) const

inline

Get the rotation.

Returns: Current rotation step

◆ rotationDegree()

float m5::unit::UnitLED::rotationDegree ( ) const

inline

Get the rotation angle per 1.

Returns: Angle per rotation step (degree)

◆ setBrightness()

void m5::unit::UnitLED::setBrightness ( const uint8_t b )

inline

Set the brightness.

Parameters

b	brightness (255 = 100%)

Note: Behaves similar to FastLED; Internal pixels's color is not changed; The brightness applied on writePixels()

◆ setPixelColor() [1/4]

bool m5::unit::UnitLED::setPixelColor	(	const uint16_t	n,
		const rgb::Color &	c )

inline

Set pixel color.

Parameters

n	Position of the pixels
c	rgb::Color

Returns: True if successful

Note: Affected by rotation

Warning: If white is not supported, white is ignored

◆ setPixelColor() [2/4]

bool m5::unit::UnitLED::setPixelColor	(	const uint16_t	n,
		const rgb::wrgb32_color_t	c )

inline

Set pixel color.

Parameters

n	Position of the pixels
c	WRGB 32bits color

Returns: True if successful

Note: Affected by rotation

Warning: If white is not supported, white is ignored

◆ setPixelColor() [3/4]

bool m5::unit::UnitLED::setPixelColor	(	const uint16_t	n,
		const uint8_t	r,
		const uint8_t	g,
		const uint8_t	b )

Set pixel color (RGB)

Parameters

n	Position of the pixels
r	Red
g	Green
b	Blue

Returns: True if successful

Note: If white is supported, white value does not change; Affected by rotation

◆ setPixelColor() [4/4]

bool m5::unit::UnitLED::setPixelColor	(	const uint16_t	n,
		const uint8_t	r,
		const uint8_t	g,
		const uint8_t	b,
		const uint8_t	w )

inline

Set pixel color (RGBW)

Parameters

n	Position of the pixels
r	Red
g	Green
b	Blue
w	White

Returns: True if successful

Note: Affected by rotation

Warning: If white is not supported, white is ignored

◆ setRotation()

void m5::unit::UnitLED::setRotation ( const int8_t rot )

Set the rotation.

Parameters

rot	Rotation step

◆ shiftLeft()

void m5::unit::UnitLED::shiftLeft ( const uint16_t count = 1 )

inline

Shift pixels left.

Parameters

count Number of shifts

Note: The empty space will be WRGB 0,0,0,0; Affected by rotation

◆ shiftRight()

void m5::unit::UnitLED::shiftRight ( const uint16_t count = 1 )

inline

Shift pixels right.

Parameters

count Number of shifts

Note: The empty space will be WRGB 0,0,0,0; Affected by rotation

◆ show()

bool m5::unit::UnitLED::show ( )

inline

Write pixel color to LED (alias)

Returns: True if successful

◆ width()

virtual uint16_t m5::unit::UnitLED::width ( ) const

inlinevirtual

Logical width in pixels.

Returns: Width

Reimplemented in m5::unit::UnitHexLED37< UnitSK6812GRB >, m5::unit::UnitHexLED37< UnitWS2812 >, m5::unit::UnitRectLED< 18, 7, UnitWS2812 >, m5::unit::UnitRectLED< 5, 5, UnitWS2812 >, and m5::unit::UnitRectLED< 8, 8, UnitWS2812 >.

◆ writePixels()

bool m5::unit::UnitLED::writePixels ( void )

Write pixel color to LED.

Returns: True if successful

Classes

Public Types

Public Member Functions

Protected Member Functions

Friends

Detailed Description

Member Function Documentation

◆ absoluteColor()

◆ add()

◆ begin()

◆ brightness()

◆ clear()

◆ color()

◆ config() [1/2]

◆ config() [2/2]

◆ fill()

◆ fillGradation()

◆ fillRainbow()

◆ fillRandom()

◆ hasWhite()

◆ height()

◆ maxRotation()

◆ numPixels()

◆ offsetB()

◆ offsetG()

◆ offsetR()

◆ offsetW()

◆ operator[]() [1/2]

◆ operator[]() [2/2]

◆ order()

◆ pixels()

◆ rotateLeft()

◆ rotateRight()

◆ rotation()

◆ rotationDegree()

◆ setBrightness()

◆ setPixelColor() [1/4]

◆ setPixelColor() [2/4]

◆ setPixelColor() [3/4]

◆ setPixelColor() [4/4]

◆ setRotation()

◆ shiftLeft()

◆ shiftRight()

◆ show()

◆ width()

◆ writePixels()
