m5::unit::UnitMCP_H10 Class Reference

MCP-H10 family unit base class. More...

#include <unit_MCP_H10.hpp>

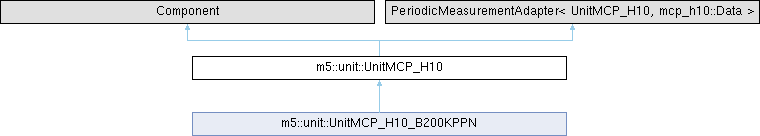

Inheritance diagram for m5::unit::UnitMCP_H10:

Classes
struct	config_t
	Settings for begin. More...

Public Member Functions
	UnitMCP_H10 (const float minV, const float maxV, const float coefficient, const float offset)
	Constructor.
virtual bool	begin () override
	Begin unit, applying config_t settings.
virtual void	update (const bool force=false) override
	Update periodic measurement.
Settings for begin
config_t	config ()
	Gets the configuration.
void	config (const config_t &cfg)
	Set the configuration.
Properties
float	coefficient () const
	coefficient (K)
float	offset () const
	offset (B)
float	minimumVoltage () const
	minimum voltage (OL)
float	maximumVoltage () const
	maximum voltage (OH)
float	voltageRange () const
	Voltage range.
Measurement data by periodic
float	pressure () const
	Oldest measured pressure (kPA)
Periodic measurement
bool	startPeriodicMeasurement (const uint32_t interval)
	Start periodic measurement.
bool	stopPeriodicMeasurement ()
	Stop periodic measurement.
Single shot measurement
bool	measureSingleshot (mcp_h10::Data &d)
	Measurement single shot.
Calibration (Software)
bool	isCalibrated () const
	Returns true if calibration is set.
void	setCalibration (const float vzero)
	Set calibration parameter.
void	clearCalibration ()
	Disable calibration.

Protected Member Functions
bool	read_measurement (mcp_h10::Data &d)
bool	read_voltage_millivolts (float &voltage, uint16_t &raw)
bool	read_voltage_via_pbhub (float &voltage, uint16_t &raw)
bool	start_periodic_measurement (const uint32_t interval)
bool	stop_periodic_measurement ()
	M5_UNIT_COMPONENT_PERIODIC_MEASUREMENT_ADAPTER_HPP_BUILDER (UnitMCP_H10, mcp_h10::Data)

Protected Attributes
std::unique_ptr< m5::container::CircularBuffer< mcp_h10::Data > >	_data {}

Detailed Description

MCP-H10 family unit base class.

Note

MCP-H10 family spec

Model	Po (kPa)	Pr (kPa)	OL (V)	OH (V)	k	B	M5?
MCP-H10-A2KP5P	0	2.5	0.5	4.5	0.625	-0.3125
MCP-H10-A2KP5PN	-2.5	2.5	0.5	4.5	1.25	-3.125
MCP-H10-A5KPP	0	5	0.5	4.5	1.25	-0.625
MCP-H10-A5KPPN	-5	5	0.5	4.5	2.5	-6.25
MCP-H10-A10KPP	0	10	0.5	4.5	2.5	-1.25
MCP-H10-A10KPPN	-10	10	0.5	4.5	5	-12.5
MCP-H10-A40KPP	0	40	0.5	4.5	10	-5
MCP-H10-A40KPPN	-40	40	0.5	4.5	20	-20
MCP-H10-A100KPP	0	100	0.5	4.5	25	-12.5
MCP-H10-A100KPPN	-100	100	0.5	4.5	50	-25
MCP-H10-A200KPP	0	200	0.5	4.5	50	-12.5
MCP-H10-A200KPPN	-100	200	0.5	4.5	75	-137.5
MCP-H10-A500KPP	0	500	0.5	4.5	125	-62.5
MCP-H10-A1000KPP	0	1000	0.5	4.5	250	-125
MCP-H10-A1000KPPN	-100	1000	0.5	4.5	275	-237.5
MCP-H10-B2KP5P	0	2.5	0.1	3.1	0.833	-0.083
MCP-H10-B2KP5PN	-2.5	2.5	0.1	3.1	1.667	-2.667
MCP-H10-B05KPPN	-5	5	0.1	3.1	3.333	-5.333
MCP-H10-B05KPP	0	5	0.1	3.1	1.667	-0.167
MCP-H10-B10KPP	0	10	0.1	3.1	3.333	-0.333
MCP-H10-B10KPPN	-10	10	0.1	3.1	6.667	-3.333
MCP-H10-B40KPP	0	40	0.1	3.1	13.333	-1.333
MCP-H10-B40KPPN	-40	40	0.1	3.1	26.667	-42.667
MCP-H10-B100KPP	0	100	0.1	3.1	33.333	-3.333
MCP-H10-B100KPPN	-100	100	0.1	3.1	66.667	-106.667
MCP-H10-B200KPP	0	200	0.1	3.1	66.667	-6.667
MCP-H10-B200KPPN	-100	200	0.1	3.1	100	-110	TubePressure(SKU:U130)
MCP-H10-B500KPP	0	500	0.1	3.1	166.667	-16.667
MCP-H10-B1000KPP	0	1000	0.1	3.1	333.333	-33.333
MCP-H10-B1000KPPN	-100	1000	0.1	3.1	366.667	-136.667

Constructor & Destructor Documentation

UnitMCP_H10()

m5::unit::UnitMCP_H10::UnitMCP_H10 ( const float minV, const float maxV, const float coefficient, const float offset )

inlineexplicit

Constructor.

Parameters

minV	OL
maxV	OH
coefficient	k
offset	B

Member Function Documentation

begin()

bool m5::unit::UnitMCP_H10::begin ( )

overridevirtual

Begin unit, applying config_t settings.

Returns

True if successful

measureSingleshot()

bool m5::unit::UnitMCP_H10::measureSingleshot

(

mcp_h10::Data &

d

)

Measurement single shot.

Parameters

[out]

d

Measured data

Returns

True if successful

Warning

During periodic detection runs, an error is returned

setCalibration()

void m5::unit::UnitMCP_H10::setCalibration ( const float vzero )

inline

Set calibration parameter.

Parameters

vzero

Voltage value to be considered as pressure 0

startPeriodicMeasurement()

bool m5::unit::UnitMCP_H10::startPeriodicMeasurement ( const uint32_t interval )

inline

Start periodic measurement.

Parameters

interval

Measurement interval (ms)

Returns

True if successful

stopPeriodicMeasurement()

bool m5::unit::UnitMCP_H10::stopPeriodicMeasurement ( )

inline

Stop periodic measurement.

Returns

True if successful

update()

void m5::unit::UnitMCP_H10::update ( const bool force = false )

overridevirtual

Update periodic measurement.

Parameters

force

Force read regardless of interval
