m5::unit::UnitMiniScales Class Reference

MiniScales unit. More...

#include <unit_MiniScales.hpp>

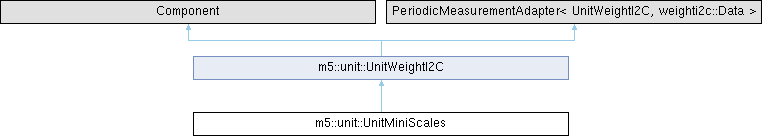

Inheritance diagram for m5::unit::UnitMiniScales:

Classes
struct	config_t
	Settings for begin. More...

Public Member Functions
	UnitMiniScales (const uint8_t addr=DEFAULT_ADDRESS)
virtual void	update (const bool force=false) override
Settings for begin
config_t	config ()
	Gets the configration.
void	config (const config_t &cfg)
	Set the configration.
LED
bool	readLEDColor (uint32_t &rgb32)
	Read the LED color as RGB32 (00RRGGBB HEX)
bool	readLEDColor (uint8_t &r, uint8_t &g, uint8_t &b)
	Read the LED color as each colors.
bool	writeLEDColor (const uint32_t rgb32)
	Write the LED color as RGB32 (00RRGGBB HEX)
bool	writeLEDColor (const uint16_t rgb16)
	Write the LED color as RGB16 (RRRRRGGGGGGBBBBB BIN)
bool	writeLEDColor (const uint8_t r, const uint8_t g, const uint8_t b)
	Write the LED color as each colors.
Button
bool	readButtonStatus (bool &press)
	Read the button status.
bool	isPressed () const
	Is button pressed?
bool	wasPressed () const
	Was button pressed?
bool	wasReleased ()
	Is button released?
Public Member Functions inherited from m5::unit::UnitWeightI2C
	UnitWeightI2C (const uint8_t addr=DEFAULT_ADDRESS)
virtual bool	begin () override
bool	resetOffset ()
	Reset offset.
bool	readRawADC (int32_t &value)
	Read the Raw ADC.
config_t	config ()
	Gets the configration.
void	config (const config_t &cfg)
	Set the configration.
float	weight () const
	Oldest measured weight (float)
int32_t	iweight () const
	Oldest measured weight (integer)
bool	startPeriodicMeasurement (const weighti2c::Mode mode, const uint32_t interval=80)
	Start periodic measurement.
bool	stopPeriodicMeasurement ()
	Stop periodic measurement.
bool	measureSingleshot (weighti2c::Data &data, const weighti2c::Mode mode)
	Measurement single shot.
bool	measureSingleshot (char *buf)
	Measurement single shot return as string.
bool	readGap (float &gap)
	Read the gap value.
bool	writeGap (const float gap, const uint32_t duration=100)
	Write the gap value.
bool	isEnabledLPFilter (bool &enabled)
	Is enabled the Low-Pass Filter?
bool	enableLPFilter (const bool enable)
	Enable the Low-Pass Filter.
bool	readAvgFilterLevel (uint8_t &level)
	Read the Averaging Filter level.
bool	writeAvgFilterLevel (const uint8_t level)
	Write the Averaging Filter level.
bool	readEmaFilterAlpha (uint8_t &alpha)
	Read the Exponential Moving Average Filter alpha.
bool	writeEmaFilterAlpha (const uint8_t alpha)
	Write the Exponential Moving Average Filter alpha.
bool	readI2CAddress (uint8_t &i2c_address)
	Read the I2C address.
bool	changeI2CAddress (const uint8_t i2c_address)
	Change unit I2C address.

Additional Inherited Members
Protected Member Functions inherited from m5::unit::UnitWeightI2C
bool	read_register (const uint8_t reg, uint8_t *buf, const size_t len)
bool	read_register8 (const uint8_t reg, uint8_t &val)
bool	start_periodic_measurement (const weighti2c::Mode mode, const uint32_t interval)
bool	stop_periodic_measurement ()
bool	read_measurement (weighti2c::Data &d, const weighti2c::Mode m)
bool	read_filter (uint8_t *buf3)
bool	write_filter (const uint8_t *buf3)
	M5_UNIT_COMPONENT_PERIODIC_MEASUREMENT_ADAPTER_HPP_BUILDER (UnitWeightI2C, weighti2c::Data)
Protected Attributes inherited from m5::unit::UnitWeightI2C
weighti2c::Mode	_mode {}
std::unique_ptr< m5::container::CircularBuffer< weighti2c::Data > >	_data {}
config_t	_cfg {}

Detailed Description

MiniScales unit.

Member Function Documentation

isPressed()

bool m5::unit::UnitMiniScales::isPressed ( ) const

inline

Is button pressed?

Returns

True if pressed

Note

The state is managed by update

readButtonStatus()

bool m5::unit::UnitMiniScales::readButtonStatus

(

bool &

press

)

Read the button status.

Parameters

[out]

pressse

Press if true

Returns

True if successful

readLEDColor() [1/2]

bool m5::unit::UnitMiniScales::readLEDColor

(

uint32_t &

rgb32

)

Read the LED color as RGB32 (00RRGGBB HEX)

Parameters

[out]

rgb32

color

Returns

True if successful

readLEDColor() [2/2]

bool m5::unit::UnitMiniScales::readLEDColor	(	uint8_t &	r,
		uint8_t &	g,
		uint8_t &	b )

Read the LED color as each colors.

Parameters

[out]	r	R
[out]	g	G
[out]	b	B

Returns

True if successful

update()

void m5::unit::UnitMiniScales::update ( const bool force = false )

overridevirtual

Reimplemented from m5::unit::UnitWeightI2C.

wasPressed()

bool m5::unit::UnitMiniScales::wasPressed ( ) const

inline

Was button pressed?

Returns

True if pressed

Note

The state is managed by update

wasReleased()

bool m5::unit::UnitMiniScales::wasReleased ( )

inline

Is button released?

Returns

True if released

Note

The state is managed by update

writeLEDColor() [1/3]

bool m5::unit::UnitMiniScales::writeLEDColor

(

const uint16_t

rgb16

)

Write the LED color as RGB16 (RRRRRGGGGGGBBBBB BIN)

Parameters

rgb16

color

Returns

True if successful

writeLEDColor() [2/3]

bool m5::unit::UnitMiniScales::writeLEDColor ( const uint32_t rgb32 )

inline

Write the LED color as RGB32 (00RRGGBB HEX)

Parameters

rgb32

color

Returns

True if successful

writeLEDColor() [3/3]

bool m5::unit::UnitMiniScales::writeLEDColor	(	const uint8_t	r,
		const uint8_t	g,
		const uint8_t	b )

Write the LED color as each colors.

Parameters

r	R
g	G
b	B

Returns

True if successful
