m5::unit::Adapter Class Reference

Adapter base class to treat M5HAL and TwoWire,GPIO,Serial,SPI... in the same way. More...

#include <adapter_base.hpp>

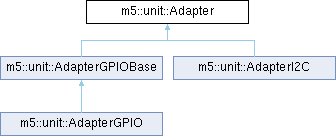

Inheritance diagram for m5::unit::Adapter:

Classes
class	Impl
	Implementation base class (Pimpl pattern) More...

Public Types
enum class	Type : uint8_t {   Unknown , I2C , GPIO , UART ,   SPI }
	Adapter type. More...

Public Member Functions
	Adapter ()
	Default constructor (creates Unknown type adapter)
	Adapter (const Adapter &)=delete
	Adapter (Adapter &&) noexcept=default
Adapter &	operator= (const Adapter &)=delete
Adapter &	operator= (Adapter &&) noexcept=default
Type	type () const
	Gets the adapter type.
virtual Adapter *	duplicate (const uint8_t)
	Create a duplicate adapter with a different address.
Transaction control
virtual void	beginTransaction ()
	Begin a bus transaction.
virtual void	endTransaction ()
	End a bus transaction.
I2C read/write
m5::hal::error::error_t	readWithTransaction (uint8_t *data, const size_t len)
	Read data within a transaction.
m5::hal::error::error_t	writeWithTransaction (const uint8_t *data, const size_t len, const uint32_t exparam=1)
	Read data within a transaction.
m5::hal::error::error_t	writeWithTransaction (const uint8_t reg, const uint8_t *data, const size_t len, const uint32_t exparam=1)
	Read data within a transaction.
m5::hal::error::error_t	writeWithTransaction (const uint16_t reg, const uint8_t *data, const size_t len, const uint32_t exparam=1)
	Read data within a transaction.
m5::hal::error::error_t	generalCall (const uint8_t *data, const size_t len)
	Send a general call on the I2C bus.
GPIO RX pin operations
m5::hal::error::error_t	pinModeRX (const gpio::Mode m)
m5::hal::error::error_t	writeDigitalRX (const bool high)
m5::hal::error::error_t	readDigitalRX (bool &high)
m5::hal::error::error_t	writeAnalogRX (const uint16_t v)
m5::hal::error::error_t	readAnalogRX (uint16_t &v)
m5::hal::error::error_t	readAnalogMilliVoltsRX (uint32_t &mv)
m5::hal::error::error_t	pulseInRX (uint32_t &duration, const int state, const uint32_t timeout_us)
GPIO TX pin operations
m5::hal::error::error_t	pinModeTX (const gpio::Mode m)
m5::hal::error::error_t	writeDigitalTX (const bool high)
m5::hal::error::error_t	readDigitalTX (bool &high)
m5::hal::error::error_t	writeAnalogTX (const uint16_t v)
m5::hal::error::error_t	readAnalogTX (uint16_t &v)
m5::hal::error::error_t	readAnalogMilliVoltsTX (uint32_t &mv)
m5::hal::error::error_t	pulseInTX (uint32_t &duration, const int state, const uint32_t timeout_us)

Protected Member Functions
	Adapter (const Type t, Impl *impl)

Protected Attributes
std::unique_ptr< Impl >	_impl {}

Detailed Description

Adapter base class to treat M5HAL and TwoWire,GPIO,Serial,SPI... in the same way.

Member Enumeration Documentation

Type

enum class m5::unit::Adapter::Type : uint8_t

strong

Adapter type.

Enumerator
Unknown	Not yet assigned.
I2C	I2C bus.
GPIO	GPIO pins.
UART	UART serial.
SPI	SPI bus.

Member Function Documentation

beginTransaction()

virtual void m5::unit::Adapter::beginTransaction ( )

inlinevirtual

Begin a bus transaction.

Reimplemented in m5::unit::AdapterSPI.

duplicate()

virtual Adapter * m5::unit::Adapter::duplicate ( const uint8_t )

inlinevirtual

Create a duplicate adapter with a different address.

Reimplemented in m5::unit::AdapterI2C.

endTransaction()

virtual void m5::unit::Adapter::endTransaction ( )

inlinevirtual

End a bus transaction.

Reimplemented in m5::unit::AdapterSPI.
